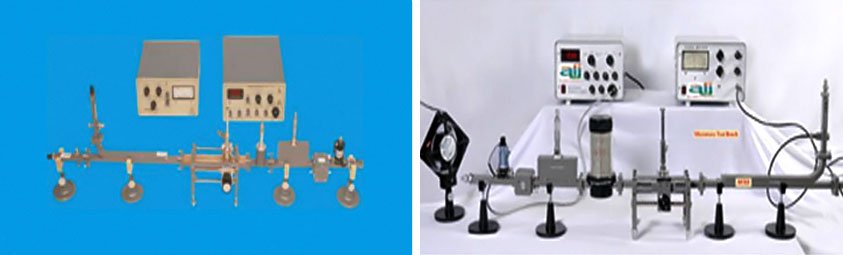

High Microwave Test Bench

Component Quantity
Klystron Power Supply 1
VSWR Meter 1
Klystron Mount 1
Klystron Tube 2k25 or equivalent 1
Isolator
variable attenuator 1
Direct Reading Frequency Meter 1
Slotted Line 1
Tunable probe 1
Detector Mount 1
Movable Short 1
Matched Termination 1
Fixed short\Reflector 1
waveguide Stand 3
Lab Manual 1
BNC Cable 3
Hardware Fixing 1 set

List of experiments

  1. Measurement of Klystron characteristics.
  2. Measurement of Freq. and wavelength.
  3. Measurement of VSWR.
  4. Measurement of Impedance.
  1. Gunn Diode Microwave Test Bench
Kit contents / Specifications:-

Component
Quantity
Gunn Power Supply 1
Gunn Oscillator 1
Pin Modulator 1
Isolator 1
variable attenuator 1
Direct Reading Frequency Meter 1
Slotted Line 1
Tunable probe 1
Detector Mount 2
Matched Termination 1
Fixed Attenuator 1
Directional  Coupler 1
Magic Tee 1
Fixed Short\Reflector 1
waveguide Stand 3
VSWR Meter 1
Lab Manual 1
BNC Cable 3
Hardware Fixing 1 set

List of experiments

  1. Measurement of Gunn diode characteristics.
  2. Measurement of Magic Tee.
  3. Measurement of Directional coupler.
  4. Measurement of relative power attenuation.
  1. Microwave Test Bench for measurement of Dielectric constant of Solid & Liquid.
Kit contents / Specifications:-
Component Quantity
Klystron Power Supply 1
Klystron Mount 1
Klystron Tube 2k25 or equivalent 1
Isolator 1
variable attenuator 1
Slotted line 1
Tunable Probe 1
Detector Mount 1
Slide Termination 1
Phase Shifter 1
Liquid Dielectric cell 1
Solid Dielectric Cell 1
VSWR Meter 1
Waveguide Stand 3
Lab Manual 1
BNC Cable 3
Hardware Fixing 1 set
List of experiments
  1. Measurement of Dielectric constant Of Solid
  2. Measurement of Dielectric constant of liquid.
  3. Measurement of Phase.
  1. Microwave Test Bench for measurement of Gain & Radiation Pattern of Antenna
Kit contents / Specifications:-
 Component Quantity
Klystron Power Supply 1
Klystron Mount 1
Klystron Tube 2k25 or equivalent 1
Isolator 1
variable attenuator 1
Direct Reading Frequency Meter 1
Detector Mount 1
Radiation Pattern Turn Table 1
Horn antenna 1
Sectorial horn antenna E\H plane 1
Slot Antenna 1
Parabolic Antenna 1
Lab Manual 1
BNC Cable 3
Hardware Fixing 1 set
List of experiments
  1. Radiation Pattern of Antennas
  2. Gain Of Antennas
  3. Microwave Test Bench Universal Model

Kit contents / Specifications:-

Component Quantity
Klystron Power Supply 1
Gunn Power Supply 1
Modulator 1
VSWR Meter  1
Klystron Mount 1
Klystron Tube 2k25 or equivalent 1
Circulator 1
Fixed attenuator 2
Variable Attenuator 1
Frequency Meter  1
Slotted section  1
Parabolic Disc 1
Liquid Dielectric cell 1
Gunn Oscillator 1
Isolator 1
Tunable probe 1
Turn Table 1
Tuner 1
Adapters 1 set
Movable Short 1
Horn Antenna 1
Matched Termination 1
Fixed short\Reflector 1
waveguide Stand 4
Lab Manual 1
BNC Cable 3
Hardware Fixing 1 set
List of experiments
  1. Measurement of Klystron characteristics.
  2. Measurement of Freq. and wavelength.
  3. Measurement of Dielectric constant Of Solid & Liquid.
  4. Radiation Pattern of Antennas.
  5. Gain of Antennas.
