Leading Manufacturer & Supplier of EMI / EMC Chamber

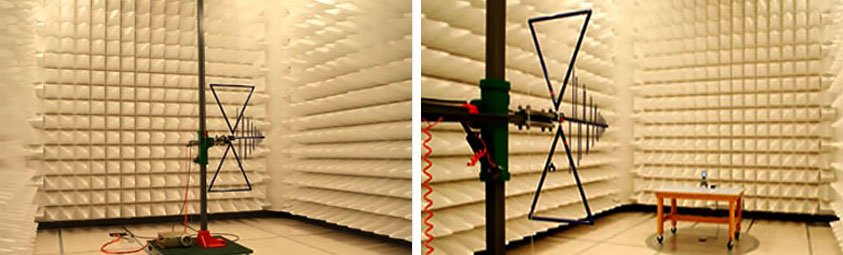

  • Semi Anechoic chamber for EMC Test facility found application in military, automotive testing, commercial, electronic component testing.
  • Manufactured in various size configurations as 3 Mtr, 5 Mtr & 10 Mtr.
  • This chamber is used to perform Radiated Emissions & Radiated Immunity.
  • Supplied with customized requirements from clients.
The following design parameters are to be achieved:-
  • Normalized Site Attenuation (NSA): +/- 4.0dB
  • Site VSWR (SVSWR): ≤ 6dB
  • Field Uniformity (FU): 75% of 16 points ≤ 6dB at 3m test distance.
  • Shielding effectiveness:-
  • Frequency range of interest : 26 MHz – 40.0 GHz
  • Shielding effectiveness: 80 to 100 dB.
  • Test procedure: as per STD-IEEE-299.
Applicable standards / test methods for a 3m semi anechoic chamber:
  • CISPR 16-1-4
  • IEC/EN 61000-4-3
  • EN 50147-1
  • ANSI C63.4
  • FCC 15
