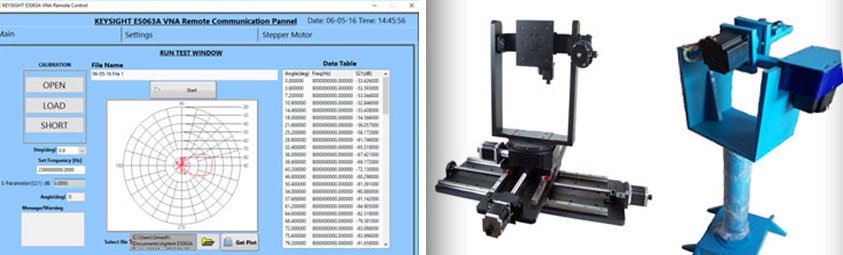

Antenna Positioner System

3 D - RADIATION PATTERN MEASUREMENT SYSTEM
SOFTWARE PART
  • Synchronization with VNA and Antenna Positioning system for Automatic Measurements.
  • 1 Axis / 2 Axis / 3 Axis/ 6 Axis positioning system Control with PC.
  • Controlling the VNA with PC.
  • Synchronization of Positioner and VNA with PC.
  • Measuring the S-Parameters(S11,S12,S21 and S22)
  • Draw E/H Plots using S- Parameter Value for different angles.
  • Draw 3D Pattern.
  • Calculation of Gain.
VNA Interfacing
  • Connectivity of the VNA by USB/GPIB/Ethernet
  • The VNA can be controlled by the PC
  • Automatic Measurement of S- Parameters
  • Generate E/H plot and 3D pattern.
Receiver Positioner System – 2 Axis Positioner Systems
  • The System has the ability to adjust the antenna position in Y and Azimuthal directions only.
  • Synchronized with VNA for automatic measurements.
  • Angular Motion can be done in different step sizes and it is user selectable.
  • Wide range of step sizes like from 0.18 deg to 0.9, 3.6, 9......any angle in multiple of 0.18 deg.
  • Y axis span is of 500 mm.
Measurement Parameters:
  • 2D E/H Radiation Pattern
  • 3D Radiation Pattern
  • Gain Measurement.
  • Beam Width.
  • Axial Ratio.
  • Measuring the S-Parameters(S11,S12,S21 and S22)
Report & Data Analysis
  • The data will be saved in excel format in the PC.
  • The Plots can also be saved in Desired format.
  • User can retrieved the past data on the software for analysis.
  • Positioner System - Transmitter & Receiver Positioner System
Receiver Positioner System – 6 Axis Positioner Systems
  • The System has the ability to adjust the antenna position in X,Y and Z, Azimuthal,Polarization & elevation directions.
  • Synchronized with VNA for automatic measurements.
  • 1 Axis / 2 Axis / 3 Axis / 5 Axis / 6 Axis positioning system Control with PC.
  • Feature /software E & H Pattern combined to give 3D pattern.
  • Angular Motion can be done in different step sizes and it is user selectable.
  • Wide range of step sizes like from 0.18 deg to 0.9,1.8,5.4......any angle in multiple of 0.18 deg.
  • X, Y & Z axis span is of 500 mm or customized.
  • Elevation & Polarization Movement will be + 90 degree.
Receiver Positioner System – 2 Axis Positioner Systems
  • The System has the ability to adjust the antenna position in Y and Azimuthal directions only.
  • Synchronized with VNA for automatic measurements.
  • Angular Motion can be done in different step sizes and it is user selectable.
  • Wide range of step sizes like from 0.18 deg to 0.9, 3.6, 9......any angle in multiple of 0.18 deg.
  • Y axis span is of 500 mm.
Transmitter Positioner System – Fixed System
  • Mechanical/Laser alignment.
  • Height same as Receiver centre. Centrally located. Height adjustable.
  • Maximum load Capacity : 5kg
